2001–2010 Chevy 2500 Coil Buckets – Solid Axle Swap

Description

Overview

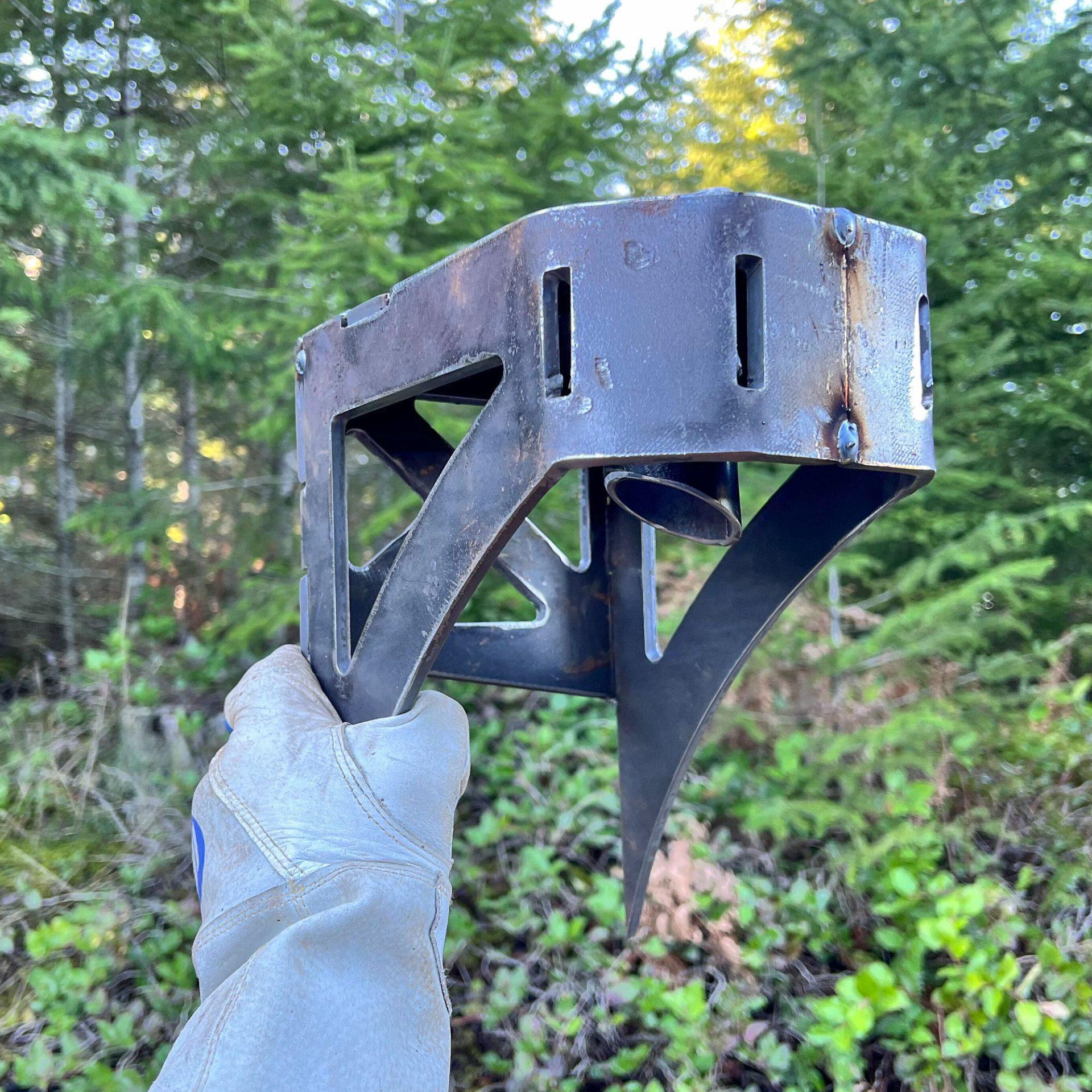

These coil buckets are a crucial component for your Chevy Solid Axle Swap. They are designed to run stock Ford Superduty front coil springs and come in multiple different heights depending on lift desired. These coil buckets are shipped flat pack, with slots cut for easy bending. They are weld-on components and come with locating tabs for easy assembly. Combine with my frame plates for even easier installation and extra strength!

See These Parts in the Build

These components were designed and tested during the Pathmaker SilverDuty solid axle swap build.

• Read the full build blog: Chevy SAS Swap Project
• Watch the build video: Chevy SAS Swap Video

Vehicle Compatibility

Designed For

• 2001–2010 Chevy/GMC 2500HD
• 2001–2010 Chevy/GMC 3500HD

Axle Compatibility

• 2005–2017 Ford Super Duty Dana 60 front axle (F-250 / F-350)

What’s Included

• (2) Coil bucket kits – driver and passenger side
• (4) pieces per kit, plus 2″ angled pipe for coil center
• Two different height options for an F-250/F-350 coil, stock height, and 2″ lift
• CAD-designed with alignment tabs for easy assembly (may differ slightly from photos as the design evolves)

Specifications

Material: CNC plasma cut mild steel
Thickness: 1/4″
Finish: Raw steel (uncoated)
Install type: Weld-on
Ships flat: Yes
Designed and CNC Plasma Cut in Canada

Design Notes

These parts were developed during the Pathmaker SilverDuty 2001–2010 Chevy 2500 solid axle swap project. The goal was to create brackets that fit the Chevy frame correctly while positioning a 2005–2017 Ford Super Duty Dana 60 in the proper location for suspension geometry, steering clearance, and durability under real trail use.

Coil Buckets

These buckets position the front coils correctly on the GM frame while providing sufficient strength for heavy off-road use.

Fabrication Notes

• Requires welding and fabrication experience
• Intended for off-road use only
• Test fit before final welding
• Professional installation recommended

Lead Time

Built and cut in-house to order.
Typical processing time: 3–5 business days.

Build the Full System

Pair this component with other SAS Parts:

• Full SAS Kit
• Transmission Crossmember
• Panhard Bracket Kit
• Frame Plate Kit

Important/Disclaimer

For off-road use only.
Modification to vehicle frame and suspension required.
Buyer assumes responsibility for installation and vehicle safety.
