2001–2010 Chevy 2500 Frame Plates – Solid Axle Swap

Description

Overview

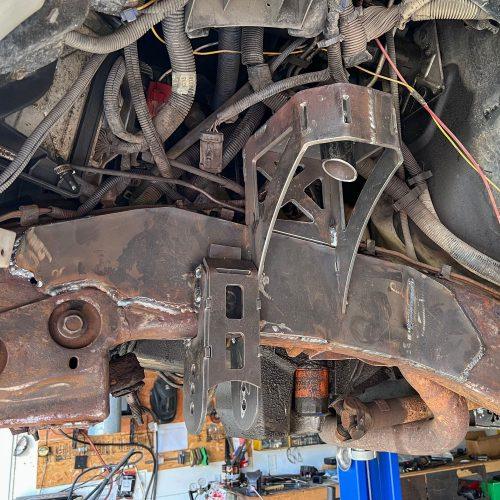

These frame plates are CNC Plasma cut out of 1/4″ mild steel to cover the holes in the frame and add strength to the frame section after removal of IFS brackets on the 2001-2010 Chevy/GMC 2500-3500 frame. Precision measured, notch cut for easy bending, alignment notches for coil bucket (sold separately)  alignment.

See These Parts in the Build

These components were designed and tested during the Pathmaker SilverDuty solid axle swap build.

• Read the full build blog: Chevy SAS Swap Project
• Watch the build video: Chevy SAS Swap Video

Vehicle Compatibility

Designed For

• 2001–2010 Chevy/GMC 2500HD
• 2001–2010 Chevy/GMC 3500HD

Axle Compatibility

• 2005–2017 Ford Super Duty Dana 60 front axle (F-250 / F-350)

What’s Included

• (2) Frame plates – 1/4″ steel
• Drivers Side and Passenger Side
• CAD-designed alignment features

Specifications

Material: CNC plasma cut mild steel
Thickness: 1/4″
Finish: Raw steel (uncoated)
Install type: Weld-on
Ships flat: Yes
Designed and CNC Plasma Cut in Canada

Design Notes

These parts were developed during the Pathmaker SilverDuty 2001–2010 Chevy 2500 solid axle swap project. The goal was to create brackets that fit the Chevy frame correctly while positioning a 2005–2017 Ford Super Duty Dana 60 in the proper location for suspension geometry, steering clearance, and durability under real trail use.

Frame Plates

These plates spread suspension loads across the frame rails and provide a solid foundation for mounting SAS components.

Fabrication Notes

• Requires welding and fabrication experience
• Intended for off-road use only
• Test fit before final welding
• Professional installation recommended

Lead Time

Built and cut in-house to order.
Typical processing time: 3–5 business days.

Build the Full System

Pair this with:

• Full SAS Kit
• Coil Bucket Kit
• Panhard Bracket Kit
• Transmission Crossmember Kit

Important/Disclaimer

For off-road use only.
Modification to vehicle frame and suspension required.
Buyer assumes responsibility for installation and vehicle safety.
