2001–2010 Chevy 2500 Radius Arms – Solid Axle Swap

Description

Overview

This kit consists of two sets of radius arm brackets for your Chevy SAS Project. These brackets are shipped WITHOUT tube or pipe due to shipping size costs. Supply your own DOM or Schd80/Schd40 Pipe with 3 sizes to choose from. These brackets lock together, while also centering the arm in the mount. Two lower and two upper radius arm brackets as well as brackets to attach the upper arm to the lower tube.

See These Parts in the Build

These components were designed and tested during the Pathmaker SilverDuty solid axle swap build.

• Read the full build blog: Chevy SAS Swap Project
• Watch the build video: Chevy SAS Swap Video

Vehicle Compatibility

Designed For

• 2001–2010 Chevy/GMC 2500HD
• 2001–2010 Chevy/GMC 3500HD

Axle Compatibility

• 2005–2017 Ford Super Duty Dana 60 front axle (F-250 / F-350)

What’s Included

• (2) Lower Radius Arm Brackets
• (2) Upper Radius Arm Brackets
• (2) Upper Radius Arm tabs

*kit does not include DOM or pipe or heim joints/johnny joints

Specifications

Material: CNC plasma cut mild steel
Thickness: 1/4″
Finish: Raw steel (uncoated)
Install type: Weld-on
Ships flat: Yes
Designed and CNC Plasma Cut in Canada

Design Notes

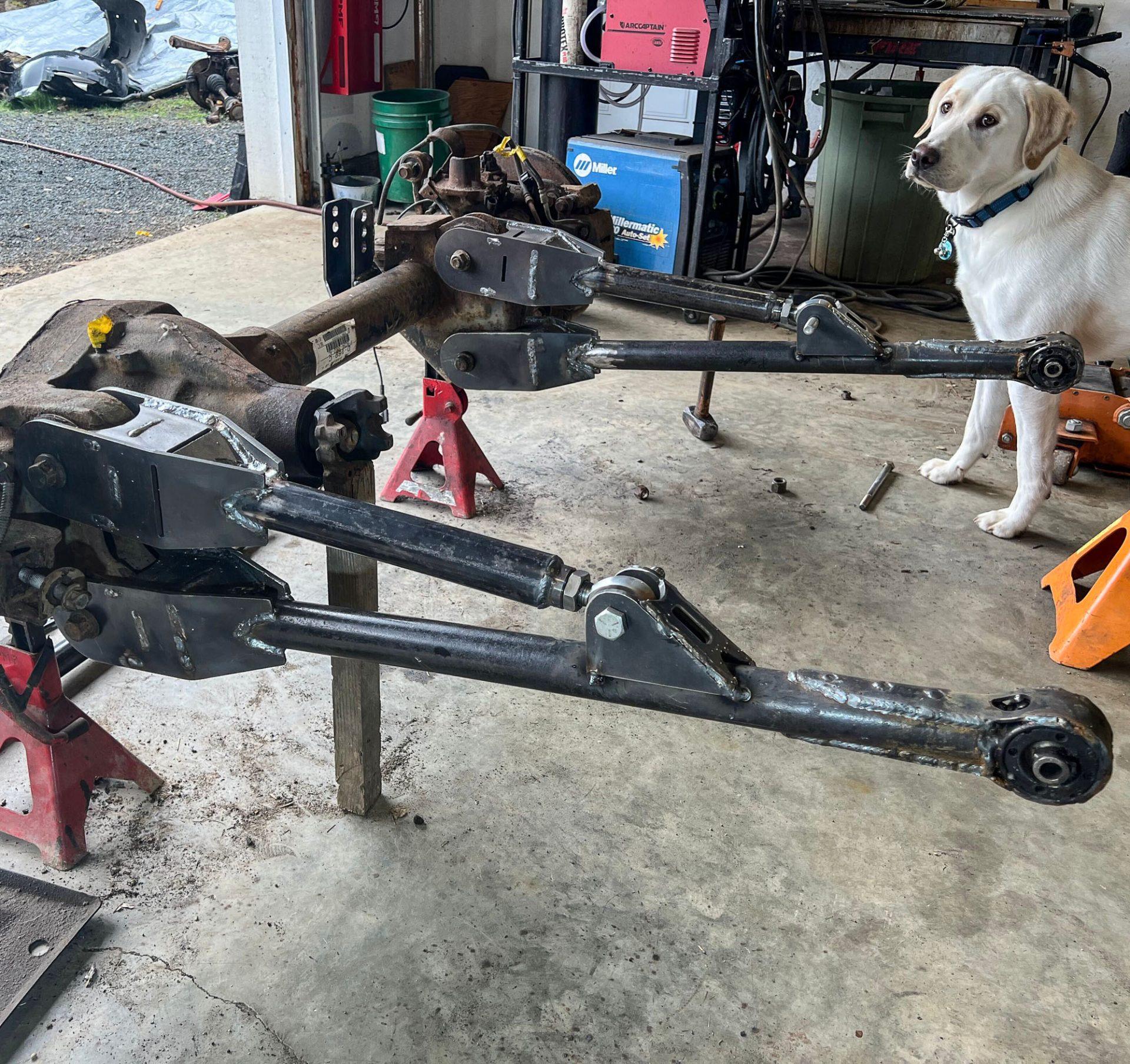

These parts were developed during the Pathmaker SilverDuty 2001–2010 Chevy 2500 solid axle swap project. The goal was to create brackets that fit the Chevy frame correctly while positioning a 2005–2017 Ford Super Duty Dana 60 in the proper location for suspension geometry, steering clearance, and durability under real trail use.

Radius Arms

These radius arms allow for different size material to be used. Customer supplied DOM or Pipe allows for different axle location for larger tires or more lit.

Fabrication Notes

• Requires welding and fabrication experience
• Intended for off-road use only
• Test fit before final welding
• Professional installation recommended

Lead Time

Built and cut in-house to order.
Typical processing time: 3–5 business days.

Build the Full System

Pair this component with other SAS Parts:

• Full SAS Kit
• Coil Bucket Kit
• Panhard Bracket Kit
• Frame Plate Kit

Important/Disclaimer

For off-road use only.
Modification to vehicle frame and suspension required.
Buyer assumes responsibility for installation and vehicle safety.
