2001–2010 Chevy 2500 Panhard Bracket – Solid Axle Swap

Description

Overview

This kit includes frame-side and axle-side brackets to add a panhard bar to a 2001–2010 Chevy 2500/3500 solid axle swap using a Ford SuperDuty Dana 60.

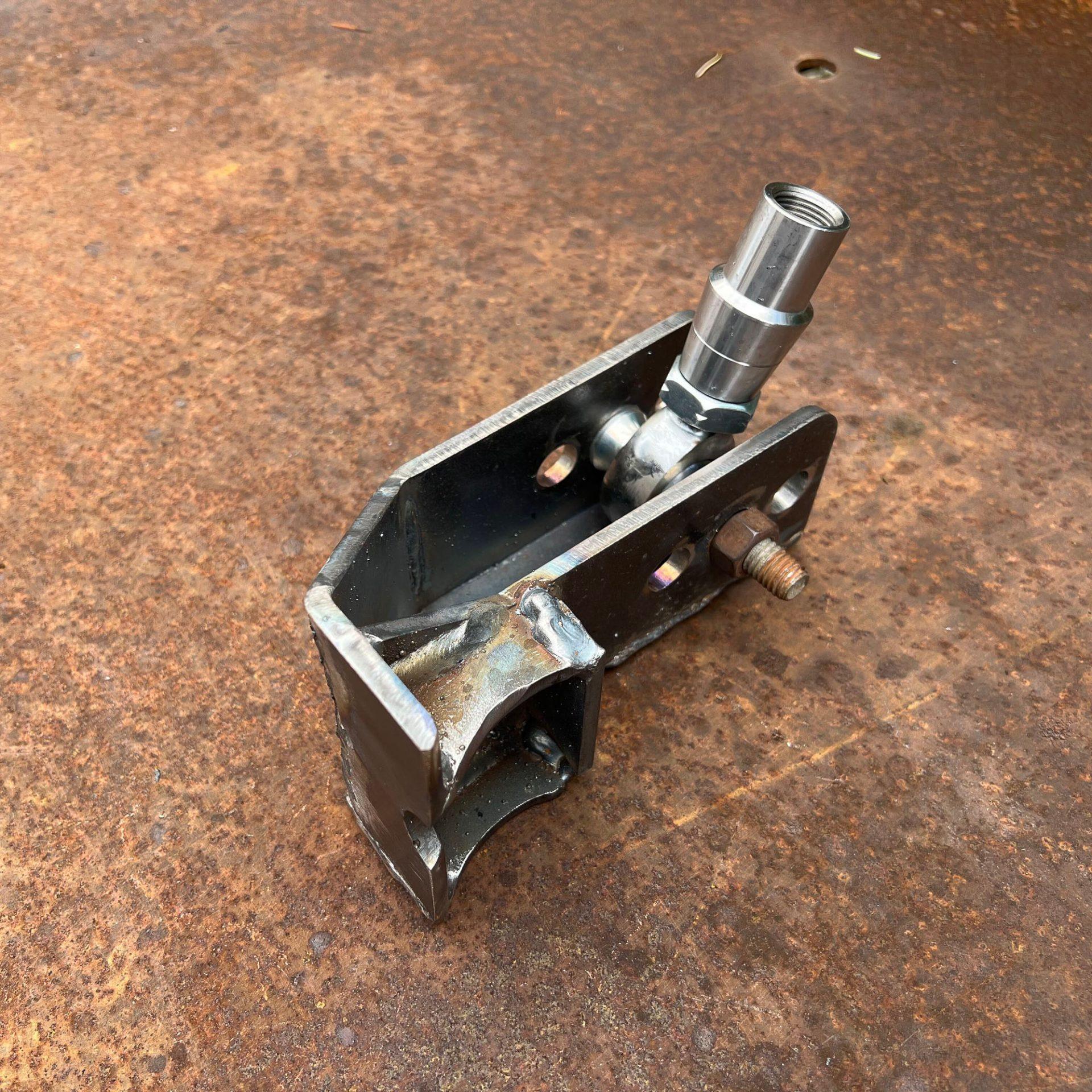

The frame-side bracket is a three-piece design with three 9/16″ mounting holes spaced 1″ apart for adjustability. It is spaced 2.625″ wide to fit a Johnny Joint or heim.

The axle-side bracket is designed for a 3.5″ axle tube and also features three 9/16″ holes spaced 1″ apart. The lower mount is spaced 1 7/8″ wide to accept a 3/4″ or 7/8″ heim.

Heims, Johnny Joints, and panhard bar material are not included. This keeps shipping costs down and allows you to choose your preferred joint type and tubing.

See These Parts in the Build

These components were designed and tested during the Pathmaker SilverDuty solid axle swap build.

• Read the full build blog: Chevy SAS Swap Project
• Watch the build video: Chevy SAS Swap Video

Vehicle Compatibility

Designed For

• 2001–2010 Chevy/GMC 2500HD
• 2001–2010 Chevy/GMC 3500HD

Axle Compatibility

• 2005–2017 Ford Super Duty Dana 60 front axle (F-250 / F-350)

What’s Included

• (3) Bracket plates frame side
• (6) Bracket plates axle side
• CAD-designed alignment features

Specifications

Material: CNC plasma cut mild steel
Thickness: 1/4″
Finish: Raw steel (uncoated)
Install type: Weld-on
Ships flat: Yes
Designed and CNC Plasma Cut in Canada

Design Notes

These parts were developed during the Pathmaker SilverDuty 2001–2010 Chevy 2500 solid axle swap project. The goal was to create brackets that fit the Chevy frame correctly while positioning a 2005–2017 Ford Super Duty Dana 60 in the proper location for suspension geometry, steering clearance, and durability under real trail use.

Panhard Mount

This mount positions the panhard bar to maintain correct axle centering and minimize bump steer.

Fabrication Notes

• Requires welding and fabrication experience
• Intended for off-road use only
• Test fit before final welding
• Professional installation recommended

Lead Time

Built and cut in-house to order.
Typical processing time: 3–5 business days.

Build the Full System

Pair this component with other SAS Parts:

• Full SAS Kit
• Coil Bucket Kit
• Transmission Crossmember Kit
• Frame Plate Kit

Important/Disclaimer

For off-road use only.
Modification to vehicle frame and suspension required.
Buyer assumes responsibility for installation and vehicle safety.
